Bluetooth Speaker with a SURPRISING trick!
3D Print your own moduler Bluetooth Speaker with cool disco lighting and modular speaker design

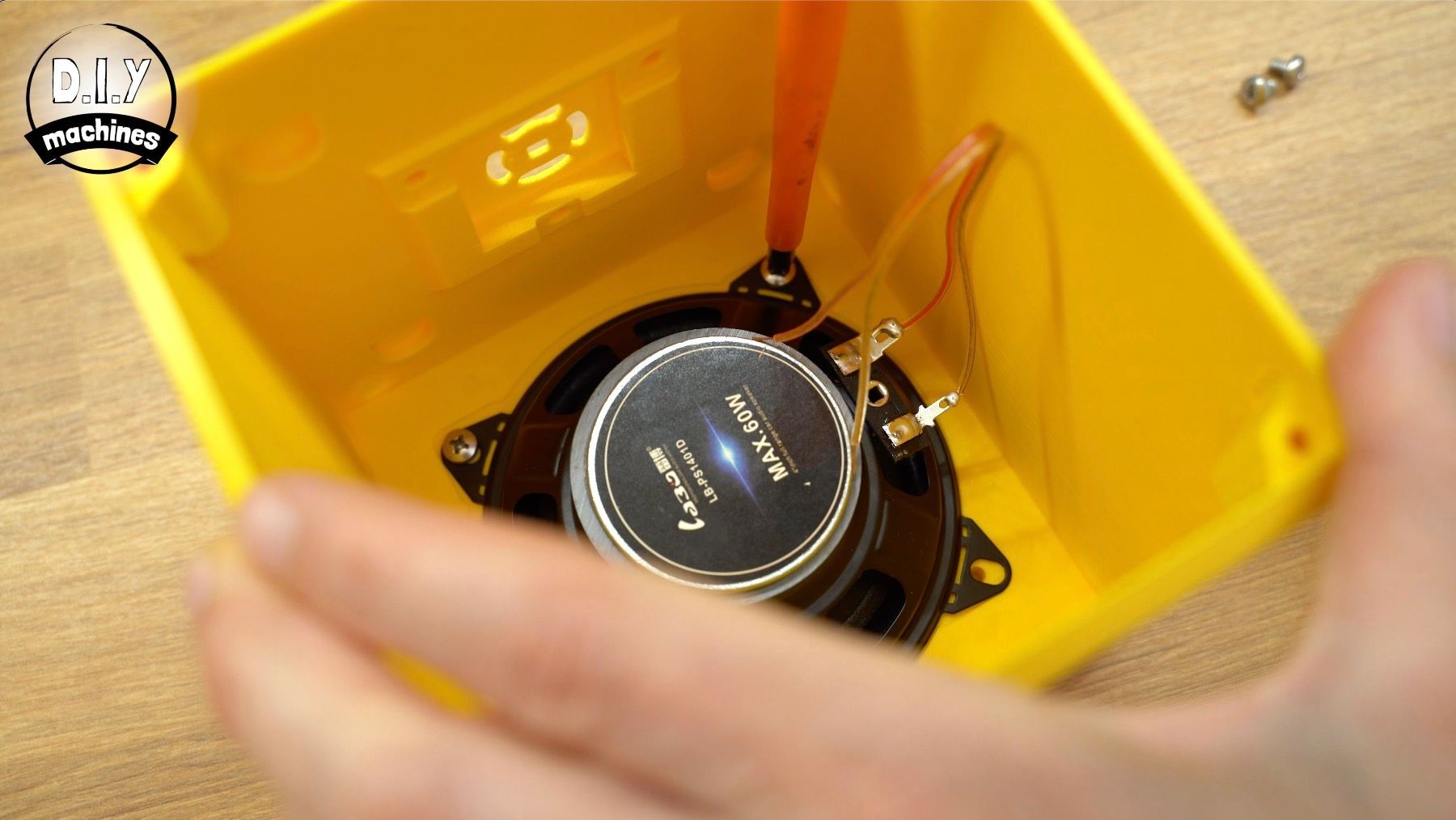

At its core is the main speaker - everything is contained in the main box including the Lithium Ion batteries, recharging circuit, bluetooth receiver and amp. You'll also find both a standard USB and USB C port to re-charge your other devices.
This is where it gets cool though: Assemble the second 'slave' speaker for a louder system and it’s connected as simply as sitting it on-top. Magnets hold it in place and the Pogo pins form the electrical connection!
Downloads:
3D models for printing: https://www.printables.com/model/503655
List of items used in this project and where to find them / BOM:
Kit of electronic parts: https://www.etsy.com/uk/listing/1492616468/
- BMS 3S 60A: https://geni.us/BMC-3S-60A

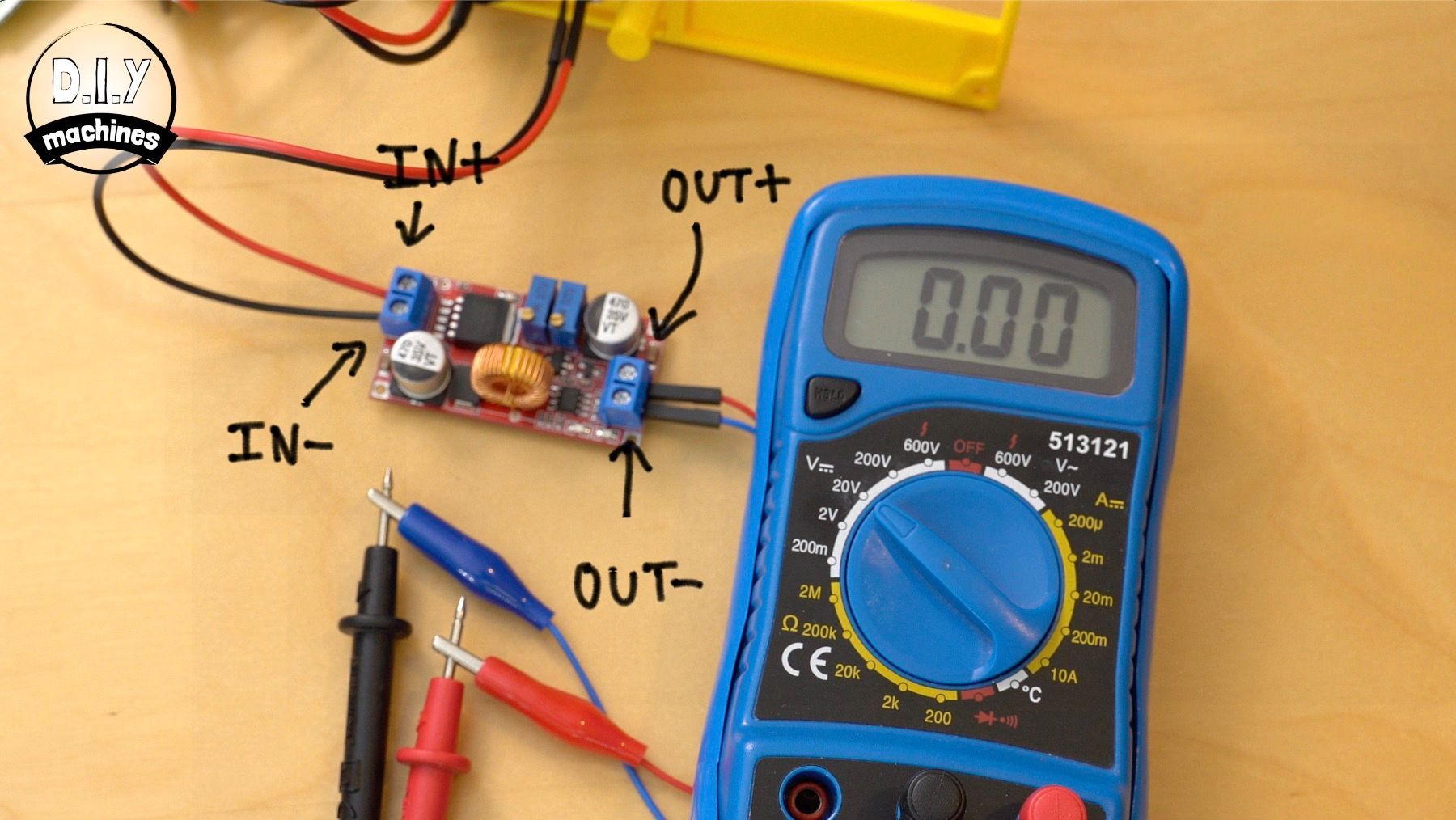

- CC/CV Buck Converter XL4015 (x1): https://geni.us/XL4015-CC-CV
- Pogo Pins (2mm spring head & 5.5mm shaft length) (x2): https://geni.us/PogoPins75-55
- 3 Cell 18650 Battery Holder (x1): https://geni.us/3s-18650-Holder

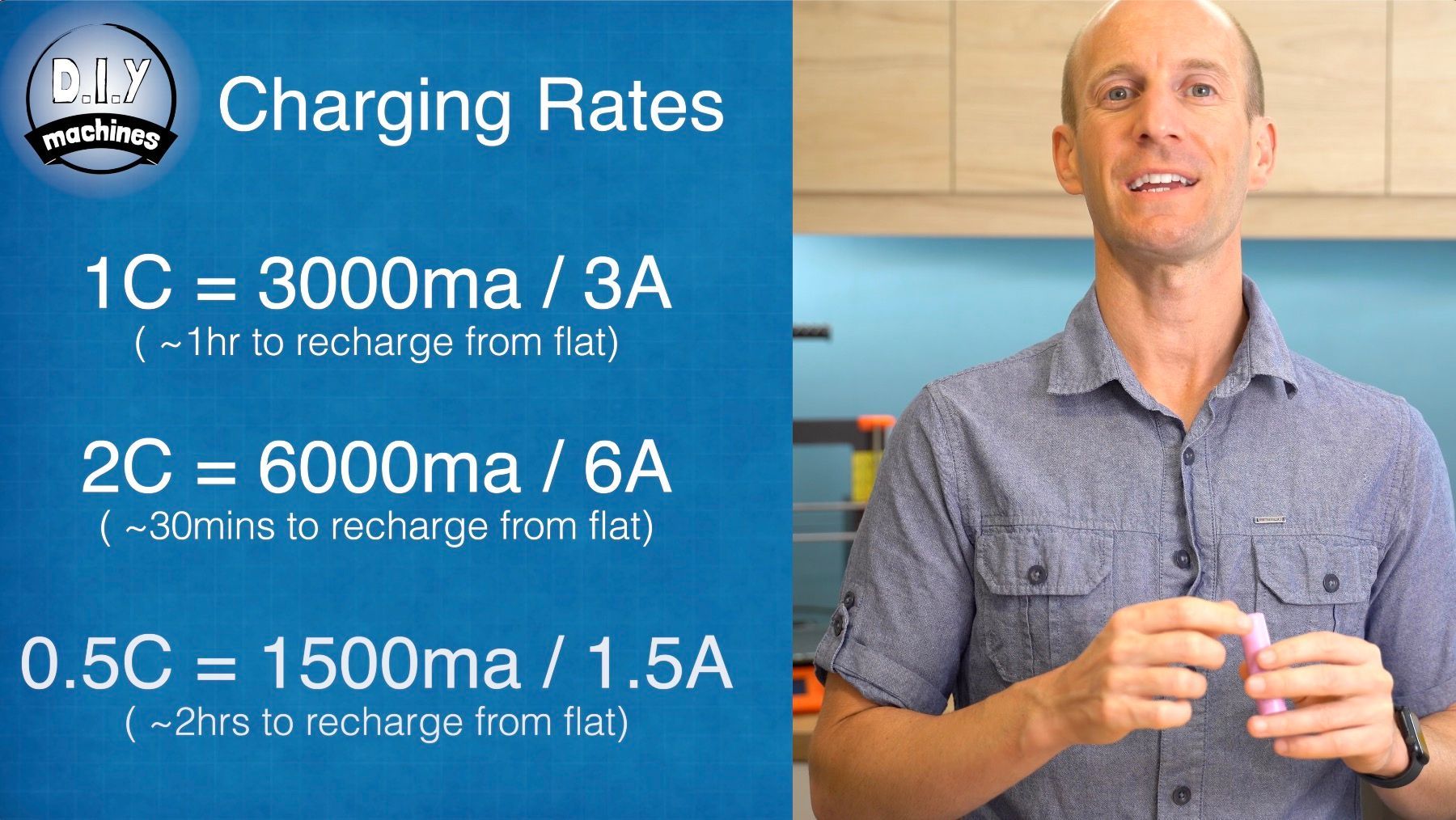

- Quality 18650 Lithium Ion Batteries from a reputable source (x3)

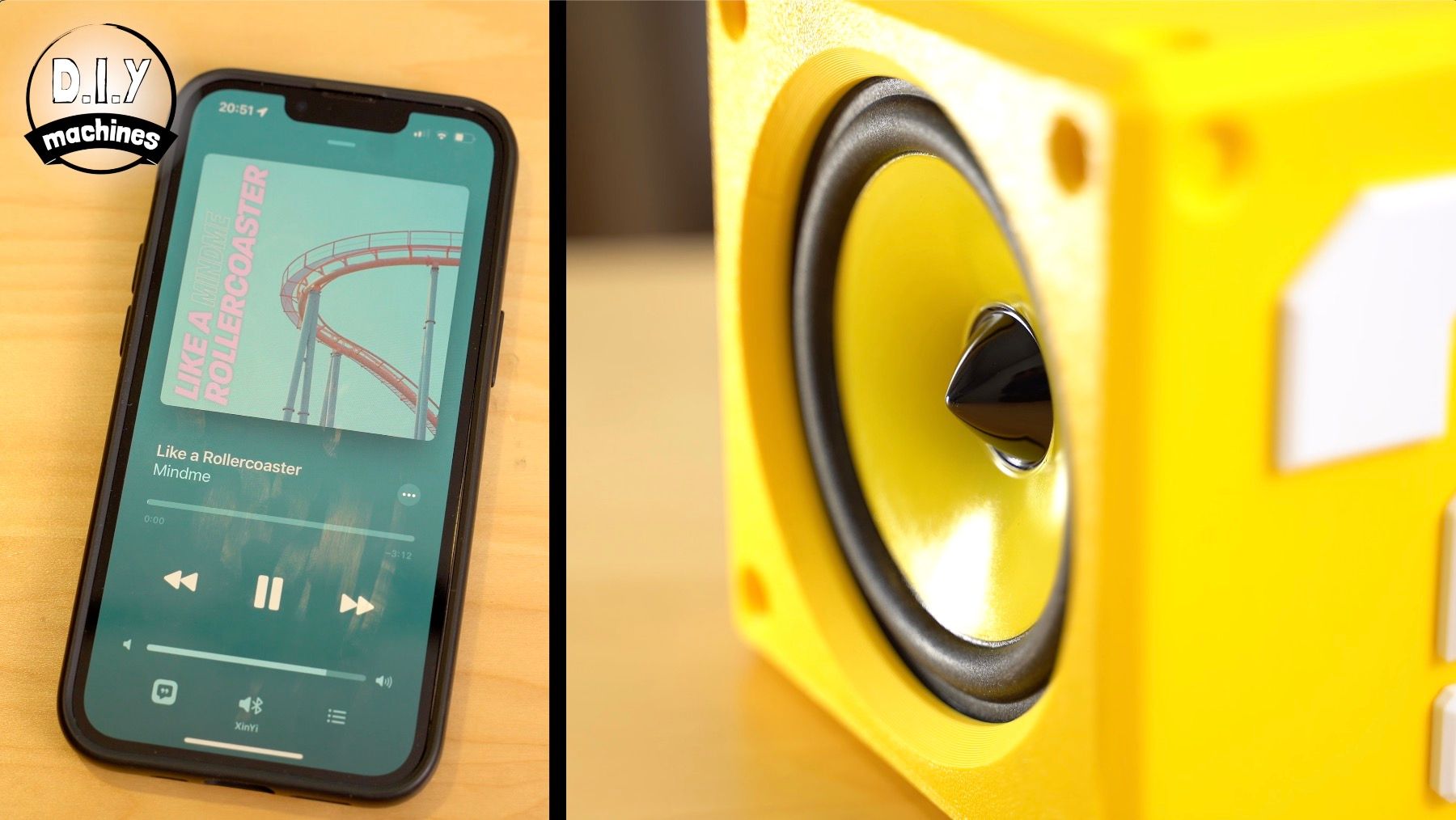

- Bluetooth Amp: https://geni.us/Bluetooth-AMP
- Voltmeter / USB PSU (x1): https://geni.us/Voltmeter-with-USB
- DC Barrel Connector (x1): https://geni.us/HighAmpDCBarrel
- Power Switch (x1): https://geni.us/Power-Switch
- 4” Full Range Speakers - They don’t have to be yellow! :) (x1 or 2): https://geni.us/4-Inch-Speakers
- Power supply:
- Magnets (12x3mm): https://geni.us/12x3mmMagnets
- Filament: https://www.3djake.uk
- PCB: https://www.pcbway.com/project/shareproject/3D_Printable_Modular_Bluetooth_Speaker_System_3df5b9d9.html
- Disco Light (optional):
https://geni.us/USB-Disco-Light
Nuts, bolts and screws needed:
- Bolts (M4x5mm):
https://geni.us/M4-Bolts

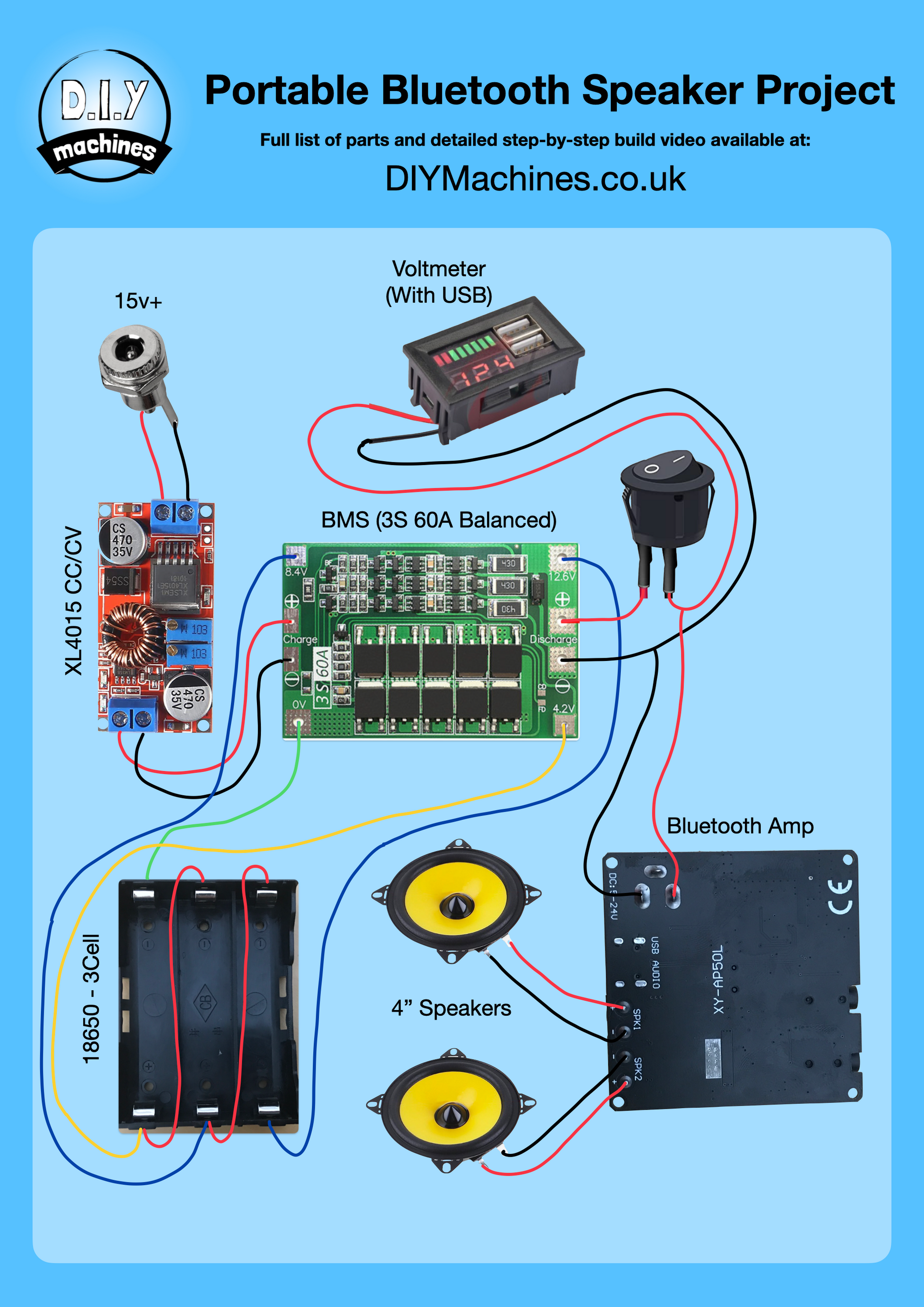

Wiring Diagram:
FAQ / Support
Discord sever for project: https://discord.gg/JZmuW73gN5
